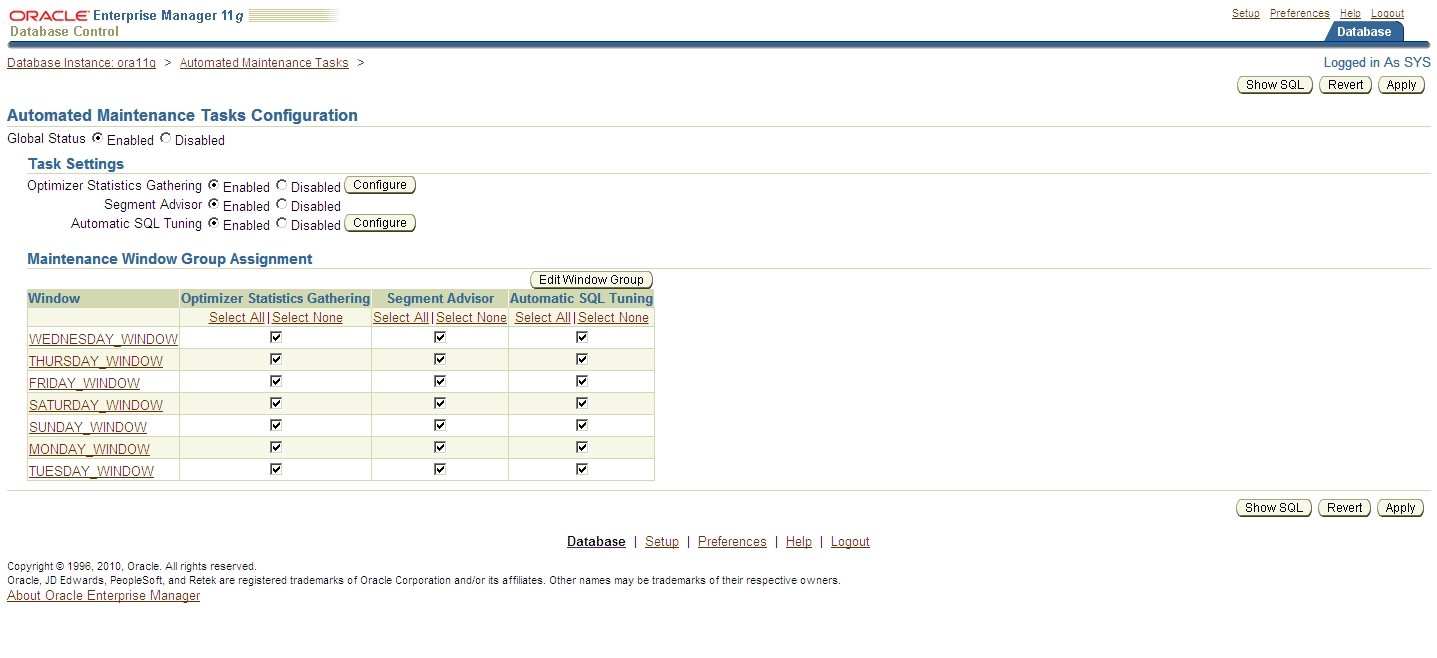

在oracle11g中,有个autotask的新特性,可以用来自动的收集优化信息,收集段信息等等。在EM中,我们看进菜单server-Oracle Scheduler-Automated Maintenance Tasks来看到他们:
问题的起源是在一个纯命令行的环境,收到一个change,需要disable autotask中的auto optimizer stats collection,于是按照原定的计划,先检查原来的状态,再执行package对其进行disable,最后再坚持一次是否已经更改成功:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 |
SQL> select CLIENT_NAME, TASK_NAME, STATUS from DBA_AUTOTASK_TASK; CLIENT_NAME TASK_NAME STATUS ----------------------------------- ---------------------------------------------------------------- -------- sql tuning advisor AUTO_SQL_TUNING_PROG ENABLED auto optimizer stats collection gather_stats_prog ENABLED auto space advisor auto_space_advisor_prog ENABLED SQL> BEGIN 2 DBMS_AUTO_TASK_ADMIN.DISABLE( client_name => 'auto optimizer stats collection', operation => NULL, window_name => NULL); END; / 3 4 5 6 7 PL/SQL procedure successfully completed. SQL> show error No errors. SQL> select CLIENT_NAME, TASK_NAME, STATUS from DBA_AUTOTASK_TASK; CLIENT_NAME TASK_NAME STATUS ----------------------------------- ---------------------------------------------------------------- -------- sql tuning advisor AUTO_SQL_TUNING_PROG ENABLED auto optimizer stats collection gather_stats_prog ENABLED auto space advisor auto_space_advisor_prog ENABLED SQL> |
很奇怪吧,status竟然没改变。
OK,我们一步一步来查。
我们做个10046的trace,发现在操作过程中,只是更新了KET$_CLIENT_CONFIG表,并没有对其他什么表进行操作。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 |
6ssdb0220:BRM1AP1:/opt/app/oracle/admin/BRM1AP/diag/rdbms/brm1ap/BRM1AP1/trace>ssdb0220:BRM1AP1:/opt/app/oracle/admin/BRM1AP/diag/rdbms/brm1ap/BRM1AP1/trace>cat BRM1AP1_ora_24510.trc Trace file /opt/app/oracle/admin/BRM1AP/diag/rdbms/brm1ap/BRM1AP1/trace/BRM1AP1_ora_24510.trc Oracle Database 11g Enterprise Edition Release 11.2.0.2.0 - 64bit Production With the Partitioning, Real Application Clusters, OLAP and Data Mining options ORACLE_HOME = /opt/app/oracle/product/11.2.0/db_2 System name: SunOS Node name: ssdb0220 Release: 5.10 Version: Generic_144488-09 Machine: sun4u Instance name: BRM1AP1 Redo thread mounted by this instance: 1 Oracle process number: 64 Unix process pid: 24510, image: oracle@ssdb0220 (TNS V1-V3) *** 2012-04-10 19:28:29.945 *** SESSION ID:(3.36061) 2012-04-10 19:28:29.946 *** CLIENT ID:() 2012-04-10 19:28:29.946 *** SERVICE NAME:(SYS$USERS) 2012-04-10 19:28:29.946 *** MODULE NAME:(sqlplus@ssdb0220 (TNS V1-V3)) 2012-04-10 19:28:29.946 *** ACTION NAME:() 2012-04-10 19:28:29.946 WAIT #18446744071463951432: nam='SQL*Net message to client' ela= 3 driver id=1650815232 #bytes=1 p3=0 obj#=-1 tim=622534396974 *** 2012-04-10 19:28:39.946 WAIT #18446744071463951432: nam='SQL*Net message from client' ela= 10000599 driver id=1650815232 #bytes=1 p3=0 obj#=-1 tim=622544399225 CLOSE #18446744071463951432:c=0,e=66,dep=0,type=1,tim=622544400245 ===================== PARSING IN CURSOR #18446744071463946160 len=145 dep=0 uid=0 oct=47 lid=0 tim=622544400901 hv=3446470561 ad='a6e1575e0' sqlid='f5cdzuv6qtxx1' BEGIN DBMS_AUTO_TASK_ADMIN.DISABLE( client_name => 'auto optimizer stats collection', operation => NULL, window_name => NULL); END; END OF STMT PARSE #18446744071463946160:c=0,e=430,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=0,tim=622544400894 ===================== PARSING IN CURSOR #18446744071526933536 len=306 dep=1 uid=0 oct=47 lid=0 tim=622544413441 hv=4261146041 ad='a6efe4ab8' sqlid='6ampntmyzrvdt' BEGIN UPDATE KET$_CLIENT_CONFIG SET LAST_CHANGE = SYSTIMESTAMP WHERE CLIENT_ID = 0 AND OPERATION_ID = 0; UPDATE KET$_CLIENT_CONFIG SET LAST_CHANGE = SYSTIMESTAMP, STATUS = :sta WHERE CLIENT_ID = :cid AND OPERATION_ID = :oid; EXCEPTION WHEN OTHERS THEN RAISE; END; END OF STMT PARSE #18446744071526933536:c=0,e=498,p=0,cr=0,cu=0,mis=0,r=0,dep=1,og=1,plh=0,tim=622544413433 BINDS #18446744071526933536: Bind#0 oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00 oacflg=01 fl2=0000 frm=00 csi=00 siz=72 off=0 kxsbbbfp=ffffffff7de7dfa8 bln=22 avl=02 flg=05 value=1 Bind#1 oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00 oacflg=01 fl2=0000 frm=00 csi=00 siz=0 off=24 kxsbbbfp=ffffffff7de7dfc0 bln=22 avl=02 flg=01 value=4 Bind#2 oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00 oacflg=01 fl2=0000 frm=00 csi=00 siz=0 off=48 kxsbbbfp=ffffffff7de7dfd8 bln=22 avl=01 flg=01 value=0 ===================== PARSING IN CURSOR #18446744071526921904 len=97 dep=2 uid=0 oct=6 lid=0 tim=622544416363 hv=2474724754 ad='a6e44e660' sqlid='8r2zud29s2mck' UPDATE KET$_CLIENT_CONFIG SET LAST_CHANGE = SYSTIMESTAMP WHERE CLIENT_ID = 0 AND OPERATION_ID = 0 END OF STMT PARSE #18446744071526921904:c=0,e=767,p=0,cr=0,cu=0,mis=0,r=0,dep=2,og=1,plh=270131105,tim=622544416360 EXEC #18446744071526921904:c=0,e=1690,p=0,cr=1,cu=2,mis=0,r=1,dep=2,og=1,plh=270131105,tim=622544418350 STAT #18446744071526921904 id=1 cnt=0 pid=0 pos=1 obj=0 op='UPDATE KET$_CLIENT_CONFIG (cr=1 pr=0 pw=0 time=1241 us)' STAT #18446744071526921904 id=2 cnt=1 pid=1 pos=1 obj=749200 op='INDEX UNIQUE SCAN KET$_CL_PK (cr=1 pr=0 pw=0 time=65 us cost=1 size=18 card=1)' CLOSE #18446744071526921904:c=0,e=15,dep=2,type=3,tim=622544419162 ===================== PARSING IN CURSOR #18446744071526911240 len=115 dep=2 uid=0 oct=6 lid=0 tim=622544419705 hv=1796764683 ad='9ae946b90' sqlid='5vz88ptpjhx0b' UPDATE KET$_CLIENT_CONFIG SET LAST_CHANGE = SYSTIMESTAMP, STATUS = :B1 WHERE CLIENT_ID = :B3 AND OPERATION_ID = :B2 END OF STMT PARSE #18446744071526911240:c=0,e=376,p=0,cr=0,cu=0,mis=0,r=0,dep=2,og=1,plh=270131105,tim=622544419702 BINDS #18446744071526911240: Bind#0 oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00 oacflg=13 fl2=202001 frm=00 csi=00 siz=24 off=0 kxsbbbfp=ffffffff7de7dfa8 bln=22 avl=02 flg=09 value=1 Bind#1 oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00 oacflg=13 fl2=202001 frm=00 csi=00 siz=24 off=0 kxsbbbfp=ffffffff7de7dfc0 bln=22 avl=02 flg=09 value=4 Bind#2 oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00 oacflg=13 fl2=202001 frm=00 csi=00 siz=24 off=0 kxsbbbfp=ffffffff7de7dfd8 bln=22 avl=01 flg=09 value=0 EXEC #18446744071526911240:c=0,e=1477,p=0,cr=1,cu=1,mis=0,r=1,dep=2,og=1,plh=270131105,tim=622544421566 STAT #18446744071526911240 id=1 cnt=0 pid=0 pos=1 obj=0 op='UPDATE KET$_CLIENT_CONFIG (cr=1 pr=0 pw=0 time=203 us)' STAT #18446744071526911240 id=2 cnt=1 pid=1 pos=1 obj=749200 op='INDEX UNIQUE SCAN KET$_CL_PK (cr=1 pr=0 pw=0 time=57 us cost=1 size=21 card=1)' CLOSE #18446744071526911240:c=0,e=5,dep=2,type=3,tim=622544421922 EXEC #18446744071526933536:c=10000,e=7736,p=0,cr=2,cu=3,mis=0,r=1,dep=1,og=1,plh=0,tim=622544422087 WAIT #18446744071463946160: nam='reliable message' ela= 3193 channel context=44522785944 channel handle=44255547448 broadcast message=45060028288 obj#=-1 tim=622544427249 EXEC #18446744071463946160:c=30000,e=26615,p=0,cr=2,cu=4,mis=0,r=1,dep=0,og=1,plh=0,tim=622544427847 *** 2012-04-10 19:28:46.188 WAIT #18446744071463946160: nam='log file sync' ela= 6212237 buffer#=3259 sync scn=822653827 p3=0 obj#=-1 tim=622550640231 WAIT #18446744071463946160: nam='SQL*Net message to client' ela= 22 driver id=1650815232 #bytes=1 p3=0 obj#=-1 tim=622550642501 *** 2012-04-10 19:28:52.093 WAIT #18446744071463946160: nam='SQL*Net message from client' ela= 5903444 driver id=1650815232 #bytes=1 p3=0 obj#=-1 tim=622556546148 CLOSE #18446744071463946160:c=0,e=259,dep=0,type=1,tim=622556547295 ===================== PARSING IN CURSOR #18446744071463945296 len=6 dep=0 uid=0 oct=44 lid=0 tim=622556547801 hv=3480936638 ad='0' sqlid='23wm3kz7rps5y' commit END OF STMT PARSE #18446744071463945296:c=0,e=310,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,plh=0,tim=622556547796 XCTEND rlbk=0, rd_only=1, tim=622556548334 EXEC #18446744071463945296:c=0,e=262,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,plh=0,tim=622556548475 WAIT #18446744071463945296: nam='SQL*Net message to client' ela= 9 driver id=1650815232 #bytes=1 p3=0 obj#=-1 tim=622556548649 *** 2012-04-10 19:29:00.553 WAIT #18446744071463945296: nam='SQL*Net message from client' ela= 8457017 driver id=1650815232 #bytes=1 p3=0 obj#=-1 tim=622565005749 CLOSE #18446744071463945296:c=0,e=61,dep=0,type=1,tim=622565006575 ===================== PARSING IN CURSOR #18446744071463938696 len=55 dep=0 uid=0 oct=42 lid=0 tim=622565006873 hv=2217940283 ad='0' sqlid='06nvwn223659v' alter session set events '10046 trace name context off' END OF STMT PARSE #18446744071463938696:c=0,e=169,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,plh=0,tim=622565006872 EXEC #18446744071463938696:c=0,e=2426,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=0,plh=0,tim=622565009463 ssdb0220:BRM1AP1:/opt/app/oracle/admin/BRM1AP/diag/rdbms/brm1ap/BRM1AP1/trace> |
那么是否在DBA_AUTOTASK_TASK和KET$_CLIENT_CONFIG之前有什么继承的关系呢?
我们进一步来看DBA_AUTOTASK_TASK ,却发现它是基于KET$_CLIENT_TASKS表的,而不是基于KET$_CLIENT_CONFIG表。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 |
SQL> l 1* select object_name,object_type,owner from dba_objects where object_name='DBA_AUTOTASK_TASK' SQL> / OBJECT_NAME OBJECT_TYPE OWNER ------------------------------ ------------------- ------------------------------ DBA_AUTOTASK_TASK VIEW SYS DBA_AUTOTASK_TASK SYNONYM PUBLIC SQL> SQL> l 1* select TEXT from dba_views where owner='SYS' and VIEW_NAME='DBA_AUTOTASK_TASK' SQL> / TEXT -------------------------------------------------------------------------------- SELECT C.CNAME_KETCL, O.PRG_KETOP, TG.TNAME_KETTG, T.TARGET_NAME, O.OPNAME_KETOP, dbms_auto_task.decode_attributes(T.ATTRIBUTES), T.TASK_PRIORITY, T.PRIORITY_OVERRIDE, DECODE(T.STATUS,1, 'DISABLED',2,'ENABLED',13,'DEFERRED','INVALID'), <<<<<<<<< see code 1 mean disable,code 2 mean enable. T.WINDOW_NAME, T.CURR_JOB_NAME, SJ.STATE, DECODE(T.EST_TYPE, 1, 'DERIVED', 2, 'FORCED', 3, 'LOCKED', 'N/A'), T.EST_WEIGHT, T.EST_DURATION, T.EST_CPU_TIME, T.EST_TEMP, T.EST_DOP, T.EST_IO_RATE, T.EST_UNDO_RATE, T.RETRY_COUNT, T.LG_DATE, T.LG_PRIORITY, T.LG_DURATION, T.LG_CPU_TIME, T.LG_TEMP, T.LG_DOP, T.LG_IO_RATE, T.LG_UNDO_RATE, T.LG_CPU_WAIT, T.LG_IO_WAIT, T.LG_UNDO_WAIT, T.LG_TEMP_WAIT, T.LG_CONCURRENCY, T.LG_CONTENTION, W.NEXT_START_DATE, T.LT_DATE, T.LT_PRIORITY, CASE T.LT_TERM_CODE WHEN NULL THEN 'N/A' WHEN 10 THEN 'SUCCEEDED' WHEN 11 THEN 'FAILED' WHEN 12 THEN 'STOPPED BY USER ACTION' WHEN 13 THEN 'STOPPED AT END OF MAINTENANCE WINDOW' WHEN 14 THEN 'STOPPED AT INSTANCE SHUTDOWN' WHEN 15 THEN 'STOPPED' ELSE 'UNKNOWN' END, T.LT_DURATION, T.LT_CPU_TIME, T.LT_TEMP, T.LT_DOP, T.LT_IO_RATE, T.LT_UNDO_RATE, T.LT_CPU_WAIT, T.LT_IO_WAIT, T.LT_UNDO_WAIT, T.LT_TEMP_WAIT, T.LT_CONCURRENCY, T.LT_CONTENTION, T.MG_DURATION, T.MG_CPU_TIME, T.MG_TEMP, T.MG_DOP, T.MG_IO_RATE, T.MG_UNDO_RATE, T.MG_CPU_WAIT, T.MG_IO_WAIT, T.MG_UNDO_WAIT, T.MG_TEMP_WAIT, T.MG_CONCURRENCY, T.MG_CONTENTION, T.INFO_FIELD_1, T.INFO_FIELD_2, T.INFO_FIELD_3, T.INFO_FIELD_4 FROM KET$_CLIENT_TASKS T, X$KETCL C, X$KETOP O, X$KETTG TG, <<<<<<<<<<<<<<<<<< T.status, T mean table KET$_CLIENT_TASKS DBA_SCHEDULER_WINDOWS W, DBA_SCHEDULER_JOBS SJ WHERE T.CLIENT_ID = C.CID_KETCL AND (BITAND(C.ATTR_KETCL,2048) = 0 OR 999999 < (SELECT TO_NUMBER(VALUE) FROM V$SYSTEM_PARAMETER WHERE NAME = '_automatic_maintenance_test')) AND C.CID_KETCL > 0 AND T.CLIENT_ID = O.CID_KETOP AND T.OPERATION_ID = O.OPID_KETOP AND T.TARGET_TYPE = TG.TID_KETTG AND T.WINDOW_NAME = W.WINDOW_NAME(+) AND T.CURR_JOB_NAME = SJ.JOB_NAME(+) SQL> |
那么 KET$_CLIENT_CONFIG和KET$_CLIENT_TASKS是否有继承关系呢?查他们的object_type发现都是table,于是再去找他们的定义,在$ORACLE_HOME/rdbms/admin/catatsk.sql中,我们看到了这2个表的定义:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 |
/opt/app/oracle/product/11.2.0/db_2/rdbms/admin>vi catatsk.sql ... -- Create configuration table CREATE TABLE KET$_CLIENT_CONFIG ( CLIENT_ID NUMBER, -- 0 for AUTOTASK Configuration OPERATION_ID NUMBER, -- 0 for Client Configuration STATUS NUMBER DEFAULT 1, -- 2 enabled, 1 - disabled, others ATTRIBUTES NUMBER DEFAULT 0, -- attribute flags PRIORITY_OVERRIDE NUMBER DEFAULT 0, -- 1 -medium, 2 - high, 3 - urgent LAST_CHANGE TIMESTAMP WITH TIME ZONE DEFAULT SYSTIMESTAMP, -- last change timestamp SERVICE_NAME VARCHAR2 (64) DEFAULT NULL, -- Service Affinity GENERATOR_JOB_NAME VARCHAR2 (64) DEFAULT NULL, -- Name of Task List Generator job FIELD_1 NUMBER, -- Spare field FIELD_2 TIMESTAMP WITH TIME ZONE, -- Spare field FIELD_3 VARCHAR2(2000) DEFAULT NULL, -- Spare field CONSTRAINT KET$_CL_PK PRIMARY KEY (OPERATION_ID, CLIENT_ID) USING INDEX TABLESPACE SYSAUX) TABLESPACE SYSAUX; -- Create main repository table CREATE TABLE KET$_CLIENT_TASKS ( CLIENT_ID NUMBER, OPERATION_ID NUMBER, TARGET_TYPE NUMBER, TARGET_NAME VARCHAR2(513), ATTRIBUTES NUMBER DEFAULT 0, -- attribute mask ATTRIBUTES_OVERRIDE NUMBER DEFAULT 0, -- attribute mask or NULL TASK_PRIORITY NUMBER DEFAULT 0, -- 1:medium, 2:high, 3:urgent PRIORITY_OVERRIDE NUMBER DEFAULT 0, -- 1:medium, 2:high, 3:urgent STATUS NUMBER DEFAULT 0, -- 1:disabled, 2:enabled, 13:defer -- -- Task Arguments -- ARG_4 VARCHAR2(1024), -- argument 4 ARG_5 VARCHAR2(1024), -- argument 5 ARG_6 VARCHAR2(1024), -- argument 6 WINDOW_NAME VARCHAR2(65), -- if STATUS == 13, deferred to CURR_JOB_NAME VARCHAR2(65), -- May be NULL if no current job CURR_WIN_START TIMESTAMP WITH TIME ZONE, -- current MW -- -- EST - Estimated resource usage -- EST_TYPE NUMBER DEfAULT 0, -- 0: none, 1 : derived, 2: forced, 3: locked EST_WEIGHT NUMBER, EST_DURATION NUMBER, EST_CPU_TIME NUMBER, EST_TEMP NUMBER, EST_DOP NUMBER, EST_IO_RATE NUMBER, EST_UNDO_RATE NUMBER, RETRY_COUNT NUMBER DEFAULT 0, -- number of failure retries GOOD_COUNT NUMBER DEFAULT 0, -- -- LG - data for Last Good (non-failure) run -- LG_JOB_LOG_ID NUMBER DEFAULT 0, -- FK dba_scheduler_job_log LG_DATE TIMESTAMP WITH TIME ZONE, LG_PRIORITY NUMBER, -- task priority LG_DURATION NUMBER, -- duration of job LG_CPU_TIME NUMBER, -- CPU time consumed LG_TEMP NUMBER, -- max Temp Space used LG_DOP NUMBER, -- max DOP used LG_IO_RATE NUMBER, -- mean I/O rate LG_UNDO_RATE NUMBER, -- undo generation rate LG_CPU_WAIT NUMBER, -- cumulative CPU wait LG_IO_WAIT NUMBER, -- cumulativeI/O Wait LG_UNDO_WAIT NUMBER, -- undo wait LG_TEMP_WAIT NUMBER, -- temp space wait LG_CONCURRENCY NUMBER, -- concurrency wait LG_CONTENTION NUMBER, -- contention wait -- -- LT - data from the Last Try (successful or not) -- Lt_JOB_LOG_ID NUMBER DEFAULT 0, -- FK dba_scheduler_job_log LT_DATE TIMESTAMP WITH TIME ZONE, LT_PRIORITY NUMBER DEFAULT 0, -- Priority at last try LT_TERM_CODE NUMBER DEFAULT 0, -- 10, 11, 12, 13, 14, 15 LT_ERROR NUMBER DEFAULT 0, -- error from last try -- -- Last Try stats LT_DURATION NUMBER, -- elapsed time of last try LT_CPU_TIME NUMBER, -- CPU time consumed LT_TEMP NUMBER, -- max Temp Space used LT_DOP NUMBER, -- max DOP used LT_IO_RATE NUMBER, -- mean I/O rate LT_UNDO_RATE NUMBER, LT_CPU_WAIT NUMBER, LT_IO_WAIT NUMBER, LT_UNDO_WAIT NUMBER, LT_TEMP_WAIT NUMBER, LT_CONCURRENCY NUMBER, LT_CONTENTION NUMBER, -- -- MG - Averaged (Mean) Good run stats -- MG_DURATION NUMBER DEFAULT 0, -- elapsed time MG_CPU_TIME NUMBER DEFAULT 0, MG_TEMP NUMBER DEFAULT 0, MG_DOP NUMBER DEFAULT 0, MG_IO_RATE NUMBER DEFAULT 0, MG_UNDO_RATE NUMBER DEFAULT 0, MG_CPU_WAIT NUMBER DEFAULT 0, MG_IO_WAIT NUMBER DEFAULT 0, MG_UNDO_WAIT NUMBER DEFAULT 0, MG_TEMP_WAIT NUMBER DEFAULT 0, MG_CONCURRENCY NUMBER DEFAULT 0, MG_CONTENTION NUMBER DEFAULT 0, -- -- Fields that may be used by Clients to store task-related data -- INFO_FIELD_1 VARCHAR2 (4000), INFO_FIELD_2 CLOB, INFO_FIELD_3 NUMBER, INFO_FIELD_4 NUMBER, CONSTRAINT KET$_TSK_PK PRIMARY KEY (CLIENT_ID, OPERATION_ID, TARGET_TYPE, TARGET_NAME) USING INDEX TABLESPACE SYSAUX ) TABLESPACE SYSAUX; -- |
发现他们也没有继承关系,是独立的2个表。
所以DBMS_AUTO_TASK_ADMIN.DISABLE这个package不会改变DBA_AUTOTASK_TASK的状态。他们之间没有关系。
我们再来看看DBA_AUTO%这样类似的table,发现有一个table叫做DBA_AUTOTASK_CLIENT,我来继续查一下它是如何定义的:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 |
SQL> l 1* select TEXT from dba_views where owner='SYS' and VIEW_NAME='DBA_AUTOTASK_CLIENT' SQL> / TEXT -------------------------------------------------------------------------------- SELECT "CNAME_KETCL","STATUS","RESOURCE_CONSUMER_GROUP","CLIENT_TAG","PRIORITY_O VERRIDE","ATTRIBUTES","WINDOW_GROUP","SERVICE_NAME","RESOURCE_PERCENTAGE","USE_R ESOURCE_ESTIMATES","MEAN_JOB_DURATION","MEAN_JOB_CPU","MEAN_JOB_ATTEMPTS","MEAN_ INCOMING_TASKS_7_DAY","MEAN_INCOMING_TASKS_30_DAY","TOTAL_CPU_LAST_7_DAYS","TOTA L_CPU_LAST_30_DAYS","MAX_DURATION_LAST_7_DAYS","MAX_DURATION_LAST_30_DAYS","WIND OW_DURATION_LAST_7_DAYS","WINDOW_DURATION_LAST_30_DAYS" FROM ( WITH ZH AS (SELECT * FROM DBA_AUTOTASK_CLIENT_HISTORY WHERE WINDOW_END_TIME > (SYSDATE - INTERVAL ' 720' HOUR) ) SELECT C.CNAME_KETCL, DECODE(dbms_auto_task.get_client_status_override(CR.CLIENT_ID), 1, 'DISABLED', decode(CR.STATUS, 2, 'ENABLED', 1, 'DISABLED', 'INVALID')) AS STATUS, (SELECT SJC.RESOURCE_CONSUMER_GROUP FROM DBA_SCHEDULER_JOB_CLASSES SJC WHERE C.HJC_KETCL = SJC.JOB_CLASS_NAME) AS RESOURCE_CONSUMER_GROUP, C.CTAG_KETCL AS CLIENT_TAG, DECODE(CR.PRIORITY_OVERRIDE, NULL, NULL, 1, 'MEDIUM', 2, 'HIGH', 3, 'URGENT','INVALID') AS PRIORITY_OVERRIDE, DBMS_AUTO_TASK.DECODE_ATTRIBUTES( DBMS_AUTO_TASK.RECONCILE_ATTRIBUTES(C.ATTR_KETCL, CR.ATTRIBUTES, 0, 0, 0, 0)) AS ATTRIBUTES, C.WGRP_KETCL AS WINDOW_GROUP, CR.SERVICE_NAME, (SELECT CPU_P1+CPU_P2+CPU_P3+CPU_P4+CPU_P5+CPU_P6+CPU_P7+CPU_P8 FROM DBA_RSRC_PLAN_DIRECTIVES RPD, DBA_SCHEDULER_JOB_CLASSES SJC WHERE RPD.PLAN = 'ORA$AUTOTASK_HIGH_SUB_PLAN' AND RPD.GROUP_OR_SUBPLAN = SJC.RESOURCE_CONSUMER_GROUP AND SJC.JOB_CLASS_NAME = C.HJC_KETCL) AS RESOURCE_PERCENTAGE, CASE BITAND(21, DBMS_AUTO_TASK.RECONCILE_ATTRIBUTES(C.ATTR_KETCL, CR.ATTRIBUTES, 0, 0, 0, 0)) WHEN 0 THEN 'TRUE' ELSE 'FALSE' END AS USE_RESOURCE_ESTIMATES, (SELECT NUMTODSINTERVAL(AVG((EXTRACT(DAY FROM JRD.RUN_DURATION)*24*60*60) + (EXTRACT(HOUR FROM JRD.RUN_DURATION)*60*60) + (EXTRACT(MINUTE FROM JRD.RUN_DURATION)*60) + EXTRACT(SECOND FROM JRD.RUN_DURATION)),'SECOND') FROM DBA_SCHEDULER_JOB_RUN_DETAILS JRD, DBA_SCHEDULER_JOB_LOG JL WHERE JL.JOB_CLASS IN (C.UJC_KETCL, C.HJC_KETCL, C.MJC_KETCL) AND JL.LOG_ID = JRD.LOG_ID) AS MEAN_JOB_DURATION, (SELECT NUMTODSINTERVAL(AVG((EXTRACT(DAY FROM JRD.CPU_USED)*24*60*60) + (EXTRACT(HOUR FROM JRD.CPU_USED)*60*60) + (EXTRACT(MINUTE FROM JRD.CPU_USED)*60) + EXTRACT(SECOND FROM JRD.CPU_USED)),'SECOND') FROM DBA_SCHEDULER_JOB_RUN_DETAILS JRD, DBA_SCHEDULER_JOB_LOG JL WHERE JL.JOB_CLASS IN (C.UJC_KETCL, C.HJC_KETCL, C.MJC_KETCL) AND JL.LOG_ID = JRD.LOG_ID) AS MEAN_JOB_CPU, (SELECT AVG(TR.RETRY_COUNT) FROM KET$_CLIENT_TASKS TR WHERE C.CID_KETCL = TR.CLIENT_ID) AS MEAN_JOB_ATTEMPTS, (SELECT SUM(JOBS_CREATED)/CASE COUNT(CH.WINDOW_NAME) WHEN 0 THEN 1 ELSE COUNT(CH.WINDOW_NAME) END FROM ZH CH WHERE CH.CLIENT_NAME = C.CNAME_KETCL AND CH.JOBS_CREATED <> 0 AND CH.WINDOW_START_TIME > (SYSDATE -INTERVAL '168' HOUR)) AS MEAN_INCOMING_TASKS_7_DAY, (SELECT SUM(JOBS_CREATED)/CASE COUNT(CH.WINDOW_NAME) WHEN 0 THEN 1 ELSE COUNT(CH.WINDOW_NAME) END FROM ZH CH WHERE CH.CLIENT_NAME = C.CNAME_KETCL AND CH.JOBS_CREATED <> 0 AND CH.WINDOW_START_TIME > (SYSDATE -INTERVAL '720' HOUR)) AS MEAN_INCOMING_TASKS_30_DAY, (SELECT NUMTODSINTERVAL(SUM((EXTRACT(DAY FROM JRD.CPU_USED)*24*60*60) + (EXTRACT(HOUR FROM JRD.CPU_USED)*60*60) + (EXTRACT(MINUTE FROM JRD.CPU_USED)*60) + EXTRACT(SECOND FROM JRD.CPU_USED)),'SECOND') FROM DBA_SCHEDULER_JOB_RUN_DETAILS JRD, DBA_SCHEDULER_JOB_LOG JL WHERE JL.JOB_CLASS IN (C.UJC_KETCL, C.HJC_KETCL, C.MJC_KETCL) AND JL.LOG_ID = JRD.LOG_ID AND JRD.LOG_DATE > (SYSDATE - INTERVAL '168' HOUR)) AS TOTAL_CPU_LAST_7_DAYS, (SELECT NUMTODSINTERVAL(SUM((EXTRACT(DAY FROM JRD.CPU_USED)*24*60*60) + (EXTRACT(HOUR FROM JRD.CPU_USED)*60*60) + (EXTRACT(MINUTE FROM JRD.CPU_USED)*60) + EXTRACT(SECOND FROM JRD.CPU_USED)),'SECOND') FROM DBA_SCHEDULER_JOB_RUN_DETAILS JRD, DBA_SCHEDULER_JOB_LOG JL WHERE JL.JOB_CLASS IN (C.UJC_KETCL, C.HJC_KETCL, C.MJC_KETCL) AND JL.LOG_ID = JRD.LOG_ID AND JRD.LOG_DATE > (SYSDATE - INTERVAL '720' HOUR)) AS TOTAL_CPU_LAST_30_DAYS, (SELECT MAX(JRD.RUN_DURATION) FROM DBA_SCHEDULER_JOB_RUN_DETAILS JRD, DBA_SCHEDULER_JOB_LOG JL WHERE JL.JOB_CLASS IN (C.UJC_KETCL, C.HJC_KETCL, C.MJC_KETCL) AND JL.LOG_ID = JRD.LOG_ID AND JRD.LOG_DATE > (SYSDATE - INTERVAL '168' HOUR)) AS MAX_DURATION_LAST_7_DAYS, (SELECT MAX(JRD.RUN_DURATION) FROM DBA_SCHEDULER_JOB_RUN_DETAILS JRD, DBA_SCHEDULER_JOB_LOG JL WHERE JL.JOB_CLASS IN (C.UJC_KETCL, C.HJC_KETCL, C.MJC_KETCL) AND JL.LOG_ID = JRD.LOG_ID AND JRD.LOG_DATE > (SYSDATE - INTERVAL '720' HOUR)) AS MAX_DURATION_LAST_30_DAYS, (SELECT NUMTODSINTERVAL(SUM( (EXTRACT(DAY FROM CH.WINDOW_DURATION)*24*60*60) + (EXTRACT(HOUR FROM CH.WINDOW_DURATION)*60*60) + (EXTRACT(MINUTE FROM CH.WINDOW_DURATION)*60) + EXTRACT(SECOND FROM CH.WINDOW_DURATION)), 'SECOND') FROM ZH CH WHERE CH.CLIENT_NAME = C.CNAME_KETCL AND CH.JOBS_CREATED > 0 AND CH.WINDOW_END_TIME > (SYSDATE - INTERVAL '168' HOUR)) AS WINDOW_DURATION_LAST_7_DAYS, (SELECT NUMTODSINTERVAL(SUM( (EXTRACT(DAY FROM CH.WINDOW_DURATION)*24*60*60) + (EXTRACT(HOUR FROM CH.WINDOW_DURATION)*60*60) + (EXTRACT(MINUTE FROM CH.WINDOW_DURATION)*60) + EXTRACT(SECOND FROM CH.WINDOW_DURATION)), 'SECOND') FROM ZH CH WHERE CH.CLIENT_NAME = C.CNAME_KETCL AND CH.JOBS_CREATED > 0 AND CH.WINDOW_END_TIME > (SYSDATE - INTERVAL ' 720' HOUR)) AS WINDOW_DURATION_LAST_30_DAYS FROM X$KETCL C, KET$_CLIENT_CONFIG CR WHERE C.CID_KETCL = CR.CLIENT_ID AND CR.OPERATION_ID = 0 AND C.CID_KETCL > 0 AND (BITAND(C.ATTR_KETCL,2048) = 0 OR 999999 < (SELECT TO_NUMBER(VALUE) FROM V$SYSTEM_PARAMETER WHERE NAME = '_automatic_maintenance_test'))) SQL> |
我们看到DBA_AUTOTASK_CLIENT是基于KET$_CLIENT_CONFIG的。所以问题到这里就明了了。
我们disable autotask应该查的表应该是DBA_AUTOTASK_CLIENT,而不是DBA_AUTOTASK_TASK:
1 2 3 4 5 6 7 8 9 |
SQL> select CLIENT_NAME,STATUS from DBA_AUTOTASK_CLIENT; CLIENT_NAME STATUS ---------------------------------------------------------------- -------- auto optimizer stats collection DISABLED auto space advisor ENABLED sql tuning advisor ENABLED SQL> |
看到确实已经变成disable了。
最后,贴一下oracle官网对这2个表的解释:
1 2 |
DBA_AUTOTASK_TASK:displays information about current and past automated maintenance tasks. DBA_AUTOTASK_CLIENT:displays statistical data for each automated maintenance task over 7-day and 30-day periods. |
呵呵,它也没说disable autotask之后该查哪个表吧。
